RS485 4G Three Wheeler Quick Charging Stations 380V 11KW 130A

Brand Name : GT

Model Number : C02

Place of Origin : Guangdong, China

MOQ : 1-50 sets

Price : 840-1100usd/set

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 10000/month

Delivery Time : 20-30 days

Packaging Details : Fumigation-Free Wooden Box

Total output power : 11KW

Single output power : 11KW

Input voltage range : Three Phase AC 380V

Single maximum output current range : 65A

Material and craftsmanship : Thickened Cold-rolled Steel Plate

Size : L460*W260*H1610mm

Contact Now

Intelligent Fast Charging Station For Electric Tricycles 11KW Single channel OEM/ODM

Key Specifications

Total output power	11KW
Single output power	11KW
Input voltage range	Three Phase AC 380V
Single maximum output current range	65A
Material and craftsmanship	Thickened Cold-rolled Steel Plate
Size	L460W260H1610mm

Product Description

This fast charging station is specially designed for electric low-speed vehicles including electric tricycles, electric motorcycles, and electric low-speed four-wheelers.

Technical Parameters

Number of equipment output channels	Single Connector (11KW)
Input voltage range	Three Phase AC 380V
Input voltage frequency	50HZ ±1HZ
Output voltage range (DC)	30V-100V
Single maximum output current range	130A
Battery BMS communication	CAN/RS485
How to use	Scan Code/Card Swipe
Communication method	4G
Display	7-inch Industrial Touch Screen
Cooling method	Temperature Controlled Air Cooling
Protection level	Dustproof And Waterproof IP53/IP54

Advanced Features

Real-time data monitoring and charging detection
Voice broadcast and message push functionality
Automatic stop and power-off memory
Comprehensive protection: Overload, Overvoltage, Undervoltage, Overcurrent, Leakage, Water Immersion, Lightning Protection
Billing according to time and power
Multiple payment methods including credit card
Remote monitoring and management via 4G network

Product Images

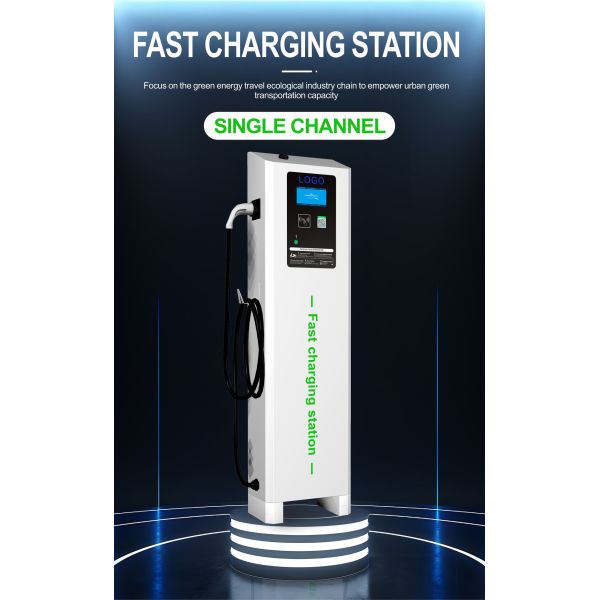

RS485 4G Three Wheeler Quick Charging Stations 380V 11KW 130A
